The 'Technical Asset' extends CzechIdM's technical account module capabilities by introducing a new entity type that groups and manages technical accounts. This module enables organizations to associate technical accounts with specific assets, assign guarantors and holders through both direct assignment and role-based mechanisms, and implement comprehensive audit trails for all operations.

Centralize management of technical accounts under logical asset groupings
Enable role-based access control for asset-related operations
Provide audit capabilities for compliance requirements
Support notifications via NOTIFY event

┌──────────────────┐      ┌────────────────┐
│ TechnicalAccount │◄─ ─ ─│ TechnicalAsset │
└──────────────────┘      └────────────────┘
                                   │
                                   │      ┌─────────────────────────┐
                                   ├─────►│ TechnicalAssetGuarantor │◄────────┐
                                   │      └─────────────────────────┘         │     ┌─────────────┐
                                   │                                          ├─────│ IdmIdentity │
                                   │      ┌──────────────────────┐            │     └─────────────┘
                                   ├─────►│ TechnicalAssetHolder │◄───────────┘
                                   │      └──────────────────────┘
                                   │
                                   │      ┌─────────────────────────────┐
                                   ├─────►│ TechnicalAssetGuarantorRole │◄────┐
                                   │      └─────────────────────────────┘     │     ┌─────────┐
                                   │                                          ├─────│ IdmRole │
                                   │      ┌──────────────────────────┐        │     └─────────┘
                                   └─────►│ TechnicalAssetHolderRole │◄───────┘
                                          └──────────────────────────┘

The technical account has been extended with an optional attribute specifying which technical asset it belongs to. If a technical asset becomes disabled, the technical accounts belonging to it will become disabled as well. Note that this doesn't work in reverse - if a technical asset becomes enabled again, its technical accounts will stay disabled until set to enabled manually.

Attribute	Type	Description
technicalAsset	UUID	optional attribute specifying which technical asset the technical account belongs to

Evaluator	Type	Description	Attributes
TechnicalAccountByTechnicalAssetGuarantorEvaluator	Regular	Returns technical accounts where the logged user is a guarantor of the parent technical asset - either directly by identity or indirectly by role. Technical accounts without an assigned technical asset are never matched by this evaluator.	No attributes
TechnicalAccountByTechnicalAssetHolderEvaluator	Regular	Returns technical accounts where the logged user is a holder of the parent technical asset - either directly by identity or indirectly by role. Technical accounts without an assigned technical asset are never matched by this evaluator.	No attributes
TechnicalAccountByTechnicalAssetTransitiveEvaluator	Transitive	Returns technical accounts where the logged user has access to the parent technical asset. Permissions are transitively derived from the technical asset the technical account belongs to. Technical accounts without an assigned technical asset are never matched by this evaluator.	Transfer permissions - a list of permissions to be transferred from a technical asset to its technical accounts; if the list is empty, all permissions held by the user for the given technical asset will be transferred to its technical accounts

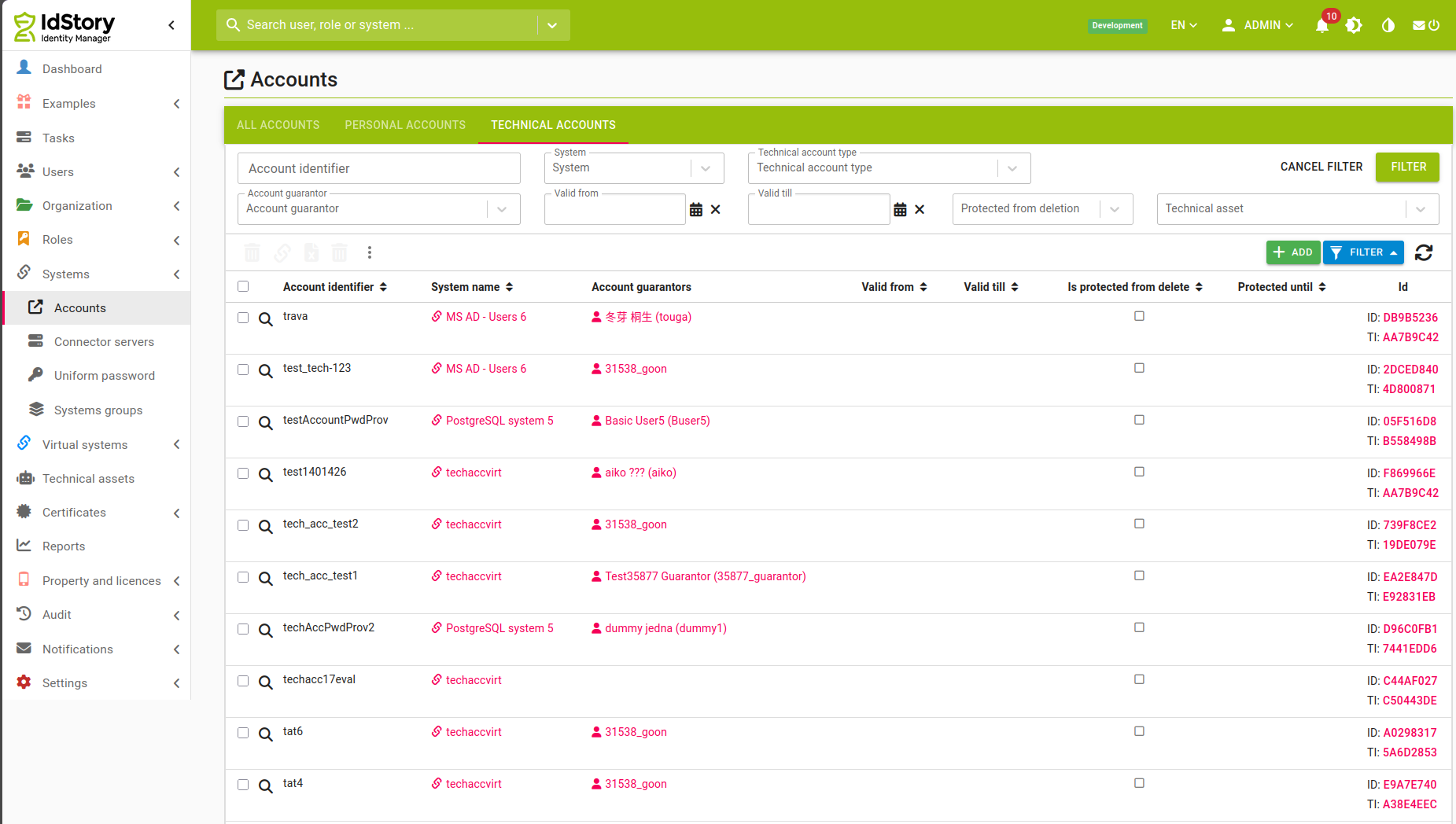

The overview of technical accounts can be accessed via the "Systems" and "Accounts" agendas in the main menu. The technical accounts in this agenda can be filtered by the technical asset they belong to, as well as by the rest of their properties.

The primary entity representing a technical asset that can contain multiple technical accounts.

Attribute	Type	Description
id	UUID	primary identifier
name	String	asset name
description	String	asset description
disabled	Boolean	flag indicating whether the asset is disabled
externalId	String	identifier assigned by an external system for integration purposes
externalCode	String	code from an external system
validFrom	LocalDate	validity start date
validTill	LocalDate	validity end date

Permission	Description
ADMIN	all permissions
COUNT	permission to retrieve the count of entities
AUTOCOMPLETE	permission to display the entity in autocomplete suggestions
READ	permission to read the entity
CREATE	permission to create the entity
UPDATE	permission to edit entity attributes
DELETE	permission to delete the entity
SETTOTECHNICALACCOUNT	permission to assign a technical account to the given Technical Asset
TAMANUALLYENABLE	permission to activate a manually deactivated Technical Asset
TAMANUALLYDISABLE	permission to manually deactivate a Technical Asset

Evaluator	Type	Description	Attributes
TechnicalAssetByGuarantorEvaluator	Regular	Returns technical assets where the logged user is a guarantor - either directly by identity or indirectly by role.	No attributes
TechnicalAssetByHolderEvaluator	Regular	Returns technical assets where the logged user is a holder - either directly by identity or indirectly by role.	No attributes

Represents direct assignment of an identity as guarantor for a technical asset.

Attribute	Type	Description
id	UUID	primary identifier
externalId	String	identifier assigned by an external system for integration purposes
technicalAsset	UUID	id of the technical asset to be guaranted
guarantor	UUID	id of the user to be guarantor

Permission	Description
ADMIN	all permissions
COUNT	permission to retrieve the count of entities
AUTOCOMPLETE	permission to display the entity in autocomplete suggestions
READ	permission to read the entity
CREATE	permission to create the entity
UPDATE	permission to edit entity attributes
DELETE	permission to delete the entity

Evaluator	Type	Description	Attributes
TechnicalAssetGuarantorByTechnicalAssetGuarantorEvaluator	Regular	Returns technical asset guarantors where the logged user is a guarantor of that technical asset - either directly by identity or indirectly by role.	No attributes
TechnicalAssetGuarantorByTechnicalAssetHolderEvaluator	Regular	Returns technical asset guarantors where the logged user is a holder of that technical asset - either directly by identity or indirectly by role.	No attributes
TechnicalAssetGuarantorByTechnicalAssetTransitiveEvaluator	Transitive	Returns technical asset guarantors where the logged user has access to the parent technical asset. Permissions are transitively derived from the technical asset the technical asset guarantor belongs to.	Transfer permissions - a list of permissions to be transferred from a technical asset to its guarantors; if the list is empty, all permissions held by the user for the given technical asset will be transferred to its guarantors

Represents the assignment of a role to a technical asset, where granting this role to a user designates them as a guarantor of that asset

Attribute	Type	Description
id	UUID	primary identifier
externalId	String	identifier assigned by an external system for integration purposes
technicalAsset	UUID	id of the technical asset to be guaranted
role	UUID	id of the role which, when assigned to a user, makes them a guarantor

Permission	Description
ADMIN	all permissions
COUNT	permission to retrieve the count of entities
AUTOCOMPLETE	permission to display the entity in autocomplete suggestions
READ	permission to read the entity
CREATE	permission to create the entity
UPDATE	permission to edit entity attributes
DELETE	permission to delete the entity

Evaluator	Type	Description	Attributes
TechnicalAssetGuarantorRoleByTechnicalAssetGuarantorEvaluator	Regular	Returns technical asset guarantor roles where the logged user is a guarantor of that technical asset - either directly by identity or indirectly by role.	No attributes
TechnicalAssetGuarantorRoleByTechnicalAssetHolderEvaluator	Regular	Returns technical asset guarantor roles where the logged user is a holder of that technical asset - either directly by identity or indirectly by role.	No attributes
TechnicalAssetGuarantorRoleByTechnicalAssetTransitiveEvaluator	Transitive	Returns technical asset guarantor roles where the logged user has access to the parent technical asset. Permissions are transitively derived from the technical asset the technical asset guarantor role belongs to.	Transfer permissions - a list of permissions to be transferred from a technical asset to its guarantor roles; if the list is empty, all permissions held by the user for the given technical asset will be transferred to its guarantor roles

Represents direct assignment of an identity as holder for a technical asset.

Attribute	Type	Description
id	UUID	primary identifier
externalId	String	identifier assigned by an external system for integration purposes
technicalAsset	UUID	id of the technical asset to be managed
holder	UUID	id of the user to be holder

Permission	Description
ADMIN	all permissions
COUNT	permission to retrieve the count of entities
AUTOCOMPLETE	permission to display the entity in autocomplete suggestions
READ	permission to read the entity
CREATE	permission to create the entity
UPDATE	permission to edit entity attributes
DELETE	permission to delete the entity

Evaluator	Type	Description	Attributes
TechnicalAssetHolderByTechnicalAssetGuarantorEvaluator	Regular	Returns technical asset holders where the logged user is a guarantor of that technical asset - either directly by identity or indirectly by role.	No attributes
TechnicalAssetHolderByTechnicalAssetHolderEvaluator	Regular	Returns technical asset holders where the logged user is a holder of that technical asset - either directly by identity or indirectly by role.	No attributes
TechnicalAssetHolderByTechnicalAssetTransitiveEvaluator	Transitive	Returns technical asset holders where the logged user has access to the parent technical asset. Permissions are transitively derived from the technical asset the technical asset holder belongs to.	Transfer permissions - a list of permissions to be transferred from a technical asset to its holders; if the list is empty, all permissions held by the user for the given technical asset will be transferred to its holders

Represents the assignment of a role to a technical asset, where granting this role to a user designates them as a holder of that asset

Attribute	Type	Description
id	UUID	primary identifier
externalId	String	identifier assigned by an external system for integration purposes
technicalAsset	UUID	id of the technical asset to be guaranted
role	UUID	id of the role which, when assigned to a user, makes them a holder

Permission	Description
ADMIN	all permissions
COUNT	permission to retrieve the count of entities
AUTOCOMPLETE	permission to display the entity in autocomplete suggestions
READ	permission to read the entity
CREATE	permission to create the entity
UPDATE	permission to edit entity attributes
DELETE	permission to delete the entity

Evaluator	Type	Description	Attributes
TechnicalAssetHolderRoleByTechnicalAssetGuarantorEvaluator	Regular	Returns technical asset holder roles where the logged user is a guarantor of that technical asset - either directly by identity or indirectly by role.	No attributes
TechnicalAssetHolderRoleByTechnicalAssetHolderEvaluator	Regular	Returns technical asset holder roles where the logged user is a holder of that technical asset - either directly by identity or indirectly by role.	No attributes
TechnicalAssetHolderRoleByTechnicalAssetTransitiveEvaluator	Transitive	Returns technical asset holder roles where the logged user has access to the parent technical asset. Permissions are transitively derived from the technical asset the technical asset holder role belongs to.	Transfer permissions - a list of permissions to be transferred from a technical asset to its holder roles; if the list is empty, all permissions held by the user for the given technical asset will be transferred to its holder roles

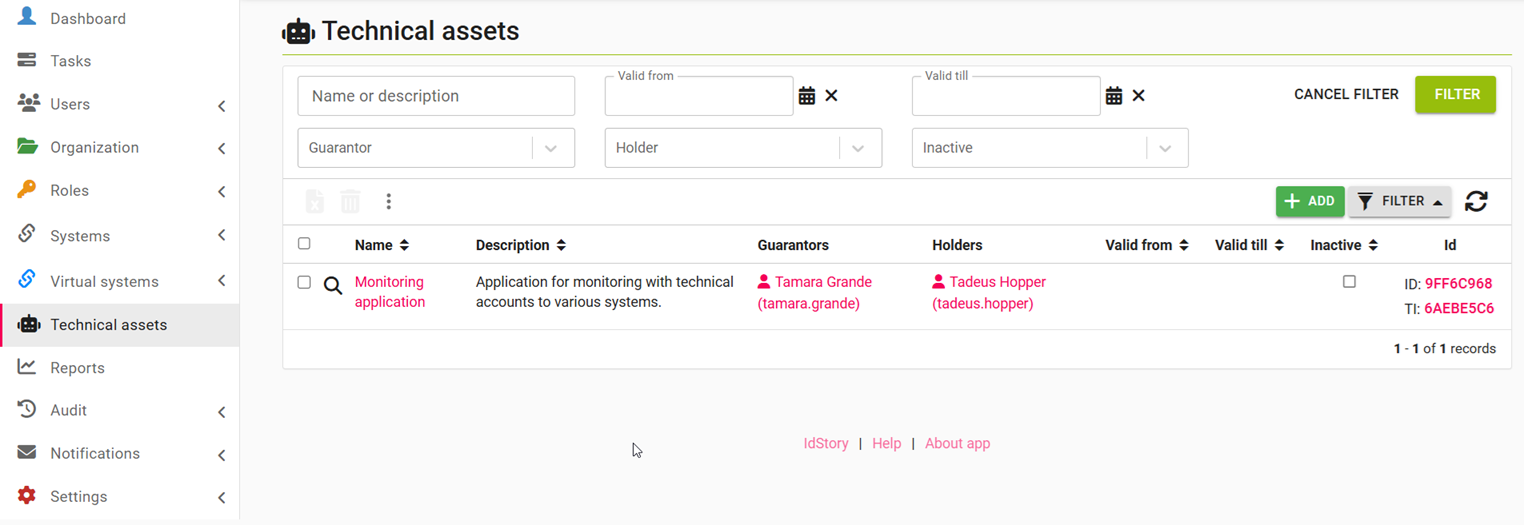

The overview of technical assets can be accessed via the "Technical assets" agenda in the main menu.

Column	Description
Name	Name of the technical asset, unique across all technical assets
Description	Description of the technical asset
Guarantors	Guarantors of the technical asset, including those listed directly and those who are guarantors via an assigned guarantor role. To prevent overcrowding, the list is truncated to 5 identities.
Holders	Holders of the technical asset, including those listed directly and those who are holders via an assigned holder role. To prevent overcrowding, the list is truncated to 5 identities.
Valid from	Start date of the technical asset's validity
Valid till	End date of the technical asset's validity
Inactive	Flag indicating that the technical asset is inactive

Filter	Description
Name or description	Enables full-text search within the name and description of the technical asset
Valid from	Enables searching for technical assets with a specific validity start date
Valid till	Enables searching for technical assets with a specific validity end date
Guarantor	Enables searching for technical assets by guarantor (either direct or via a role)
Holder	Enables searching for technical assets by holder (either direct or via a role)
Inactive	Enables searching only for active or only for inactive technical assets

Bulk action	Description	Required permission
Report	Basic export of technical assets	always available
Delete technical asset	Allows deletion of technical assets, including subordinate entities (direct guarantors/holders and those via role). If the technical asset is assigned to technical accounts, this association is deleted.	Delete

If you want to delete technical accounts assigned to a specific Technical Asset, you need to do it manually. Deleting is a destructive operation, that also results in deleting the accounts on end systems, so IdM is not doing it automatically.

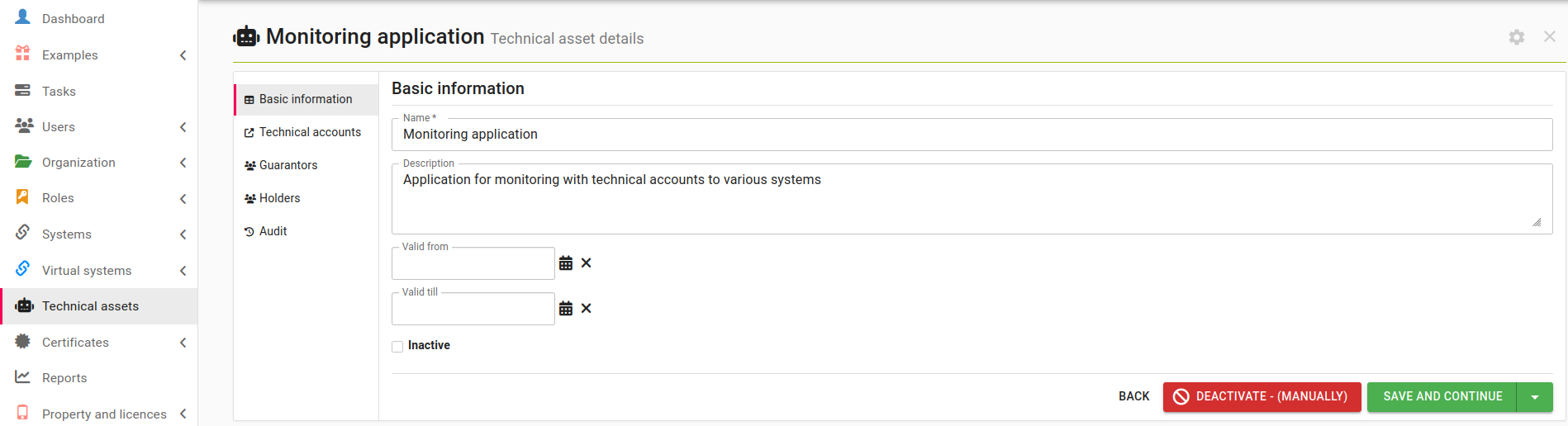

After clicking on the magnifying glass icon or the name of a technical asset in the technical asset table, the detail view of the given technical asset is displayed, with "Basic information" as the default sub-agenda. If the user has the Update permission for a technical asset, they can edit the fields.

To deactivate/activate a technical asset, the user needs the TAMANUALLYDISABLE and TAMANUALLYENABLE permissions. Otherwise the respective button won't be displayed.

Field	Description
Name	Name of the technical asset, unique across all technical assets
Description	Description of the technical asset
Valid from	Start date of the technical asset's validity
Valid till	End date of the technical asset's validity
Inactive	Flag indicating that the technical asset is inactive

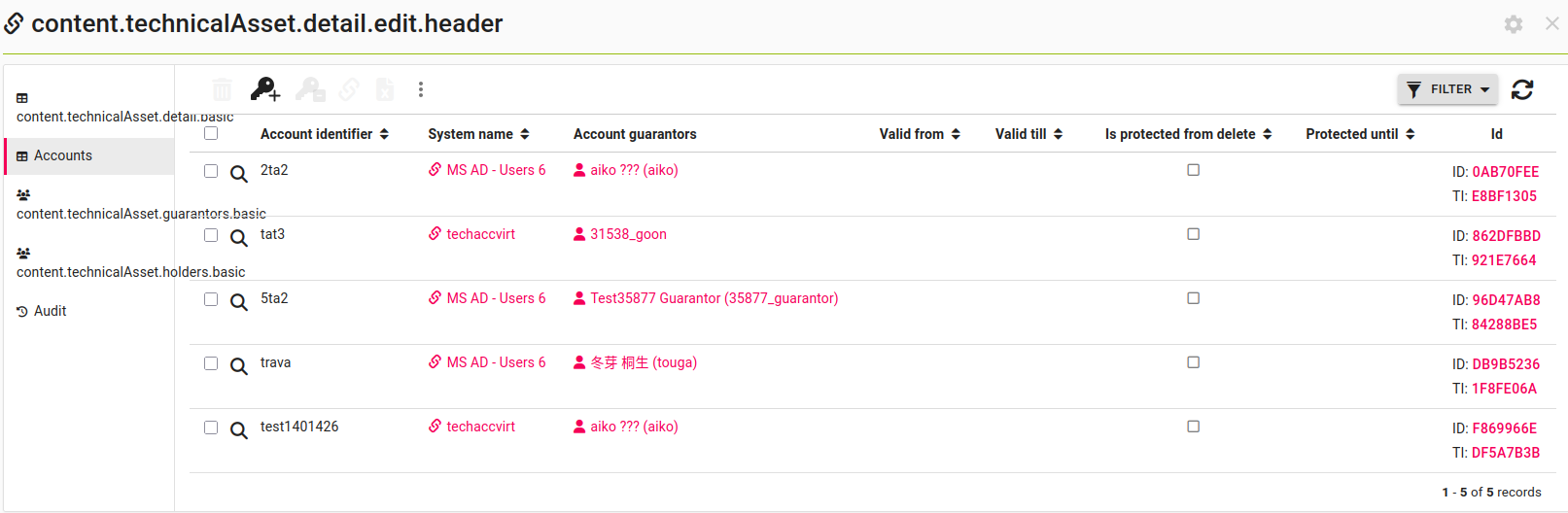

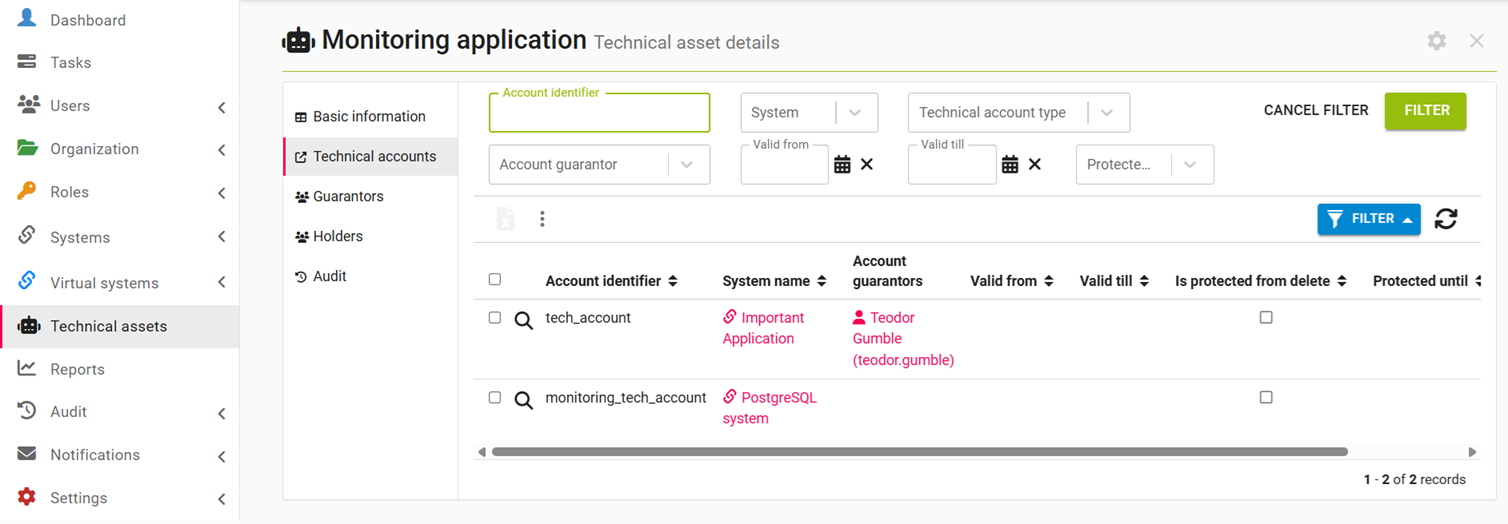

The "Technical accounts" sub-agenda contains an overview of all technical accounts under the given technical asset.

Column	Description
Account identifier	Account identifier on the system
System name	Name of the system to which the technical account provides access
Account guarantors	Guarantors of the technical account, including those listed directly and those who are guarantors via an assigned guarantor role
Valid from	Start date of the technical account's validity
Valid till	End date of the technical account's validity
Is protected from delete	Flag indicating that the technical account is protected from deletion (it is in quarantine)
Protected untill	Date until which the technical account is protected from deletion (when the quarantine expires and the account will be deleted)

Filter	Description
Account identifier	Enables searching by technical account name; an exact match is required
System	Enables searching by the name of the system to which the technical account provides access.
Technical account type	Enables searching by system mapping
Account guarantor	Enables searching for technical accounts by guarantor (either direct or via a role)
Valid from	Enables searching for technical accounts with a specific validity start date
Valid till	Enables searching for technical accounts with a specific validity end date
Protected from deletion	Enables searching only for technical accounts that are in quarantine, or only for those that are not

Bulk action	Description	Required permissions
Report	Basic export of technical accounts	always available

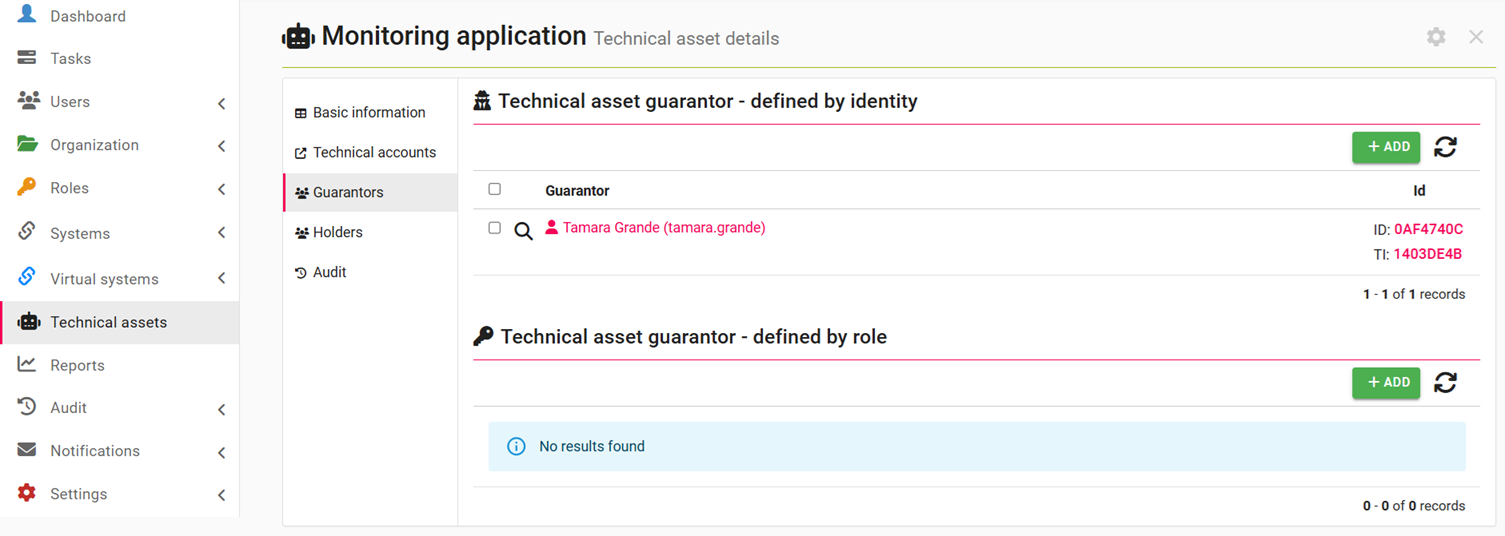

This sub-agenda allows you to manage the direct guarantors of the technical asset, as well as guarantor roles, the assignment of which makes a user a guarantor.

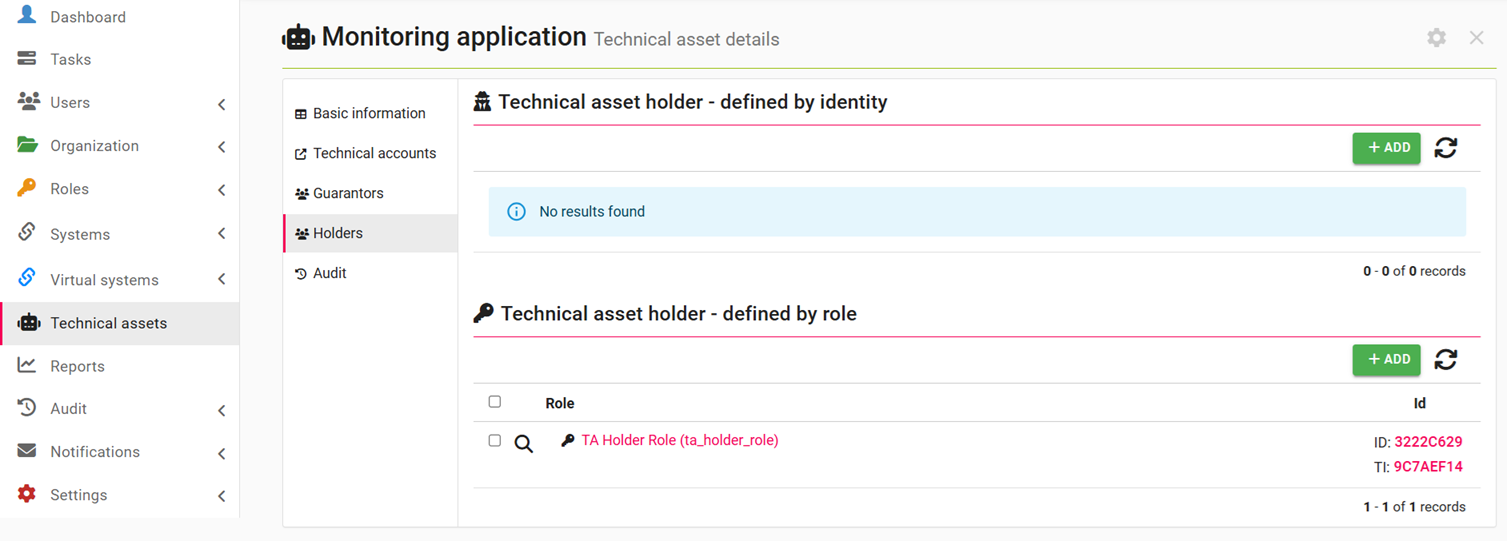

This sub-agenda allows you to manage the direct holders of the technical asset, as well as holder roles, the assignment of which makes a user a holder.

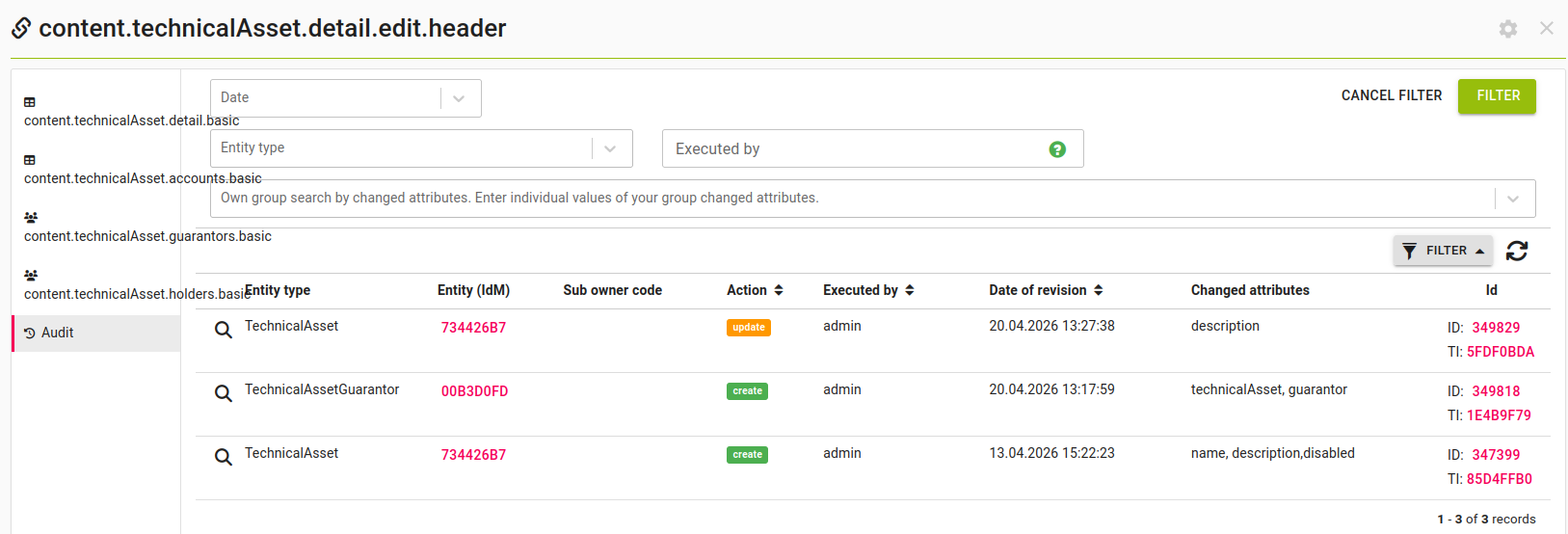

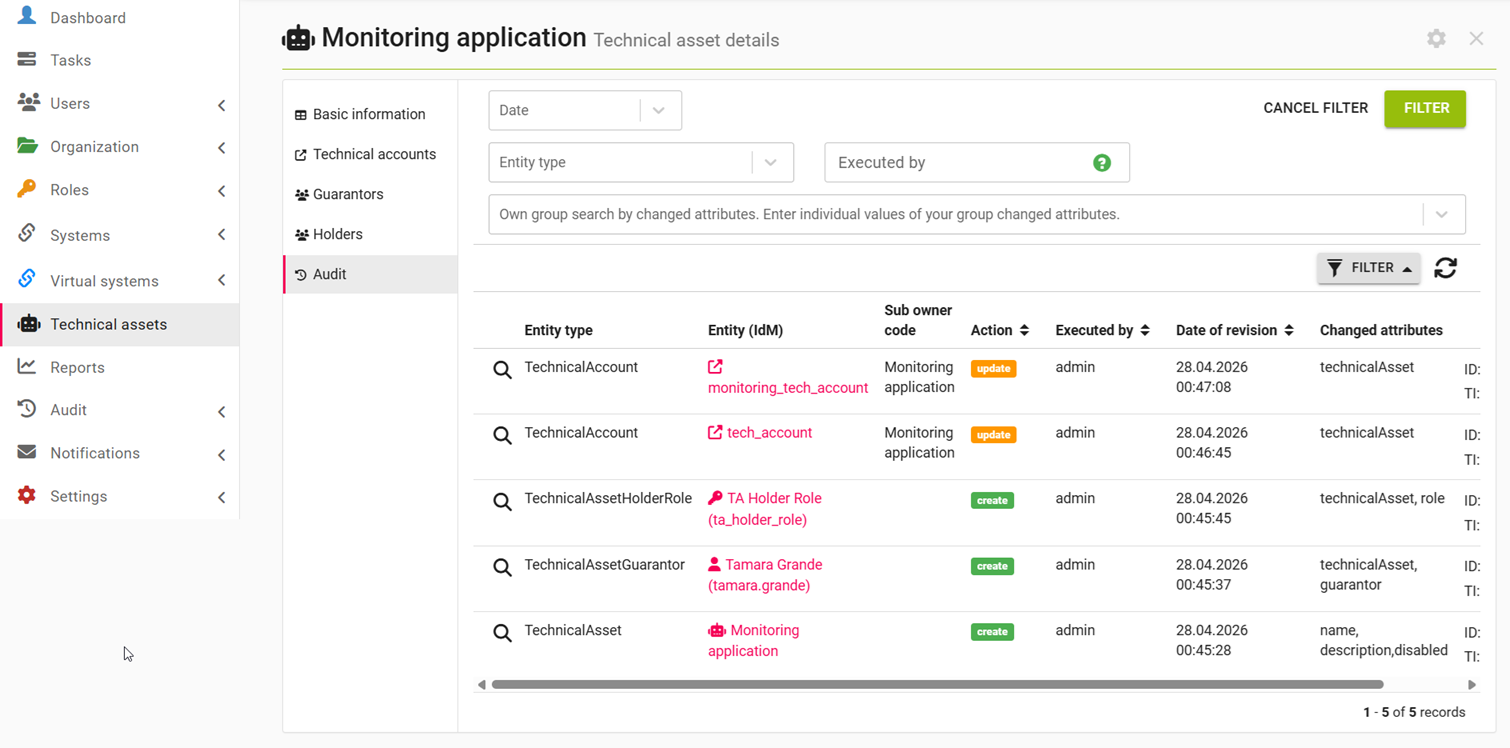

This sub-agenda displays the audit log for the technical asset and its related entities.

Column	Description
Entity type	Type of entity upon which the action was performed
Entity (IdM)	Entity upon which the action was performed
Sub owner code	Code of the secondary related entity
Action	Type of performed action
Executed by	Username of the user who performed the action
Date of revision	Date and time when the action was performed
Changed attributes	List of attributes changed during the action

Filter	Descriptin
Date	Enables searching for actions performed within a specific period
Entity type	Enables searching by the type of entity upon which the action was performed.
Executed by	Enables searching by the username of the user who performed the action; an exact match is required
Own group search by changed attributes	Enables searching for actions during which the given list of attributes was changed

The audit table has no bulk actions.
