Connector configuration and attribute mapping

Creation of a newly connected system will be demonstrated on a database connector (ConnIdDBBundle). Firstly, we will create a new system named Table and choose the database connector. All settings for this connector are available in the Configuration tab. In the picture below is an example of the configuration:

The configuration below is only an example.The system in its default state doesn't contain the mapped table "system-users"

The connector pool is a very useful feature that avoids unnecessarily creating a new connector instance each time a connector is called. Typically, each connector instance also creates a connection to that target system. It is effective to maintain these connections for longer periods and for multiple calls.

Another advantageous pool, besides maintaining a link to the target system, is avoiding the need to re-create / initialize the connector. For example, a JDBC scripted connector compiles all Groovy scripts from the connector configuration during a connector instance initialization. Only this operation can take seconds. Using the pool will allow you to create and maintain only one instance of the connector, ie. the compilation will be performed only once.

The last advantage is the ability to use multiple connections to one target system, which is especially advantageous during parallel processing.

Pool configurations:

  • Pooling supported - Enable / disable entire pool
  • Max idle objects
  • Minimum number of idle objects
  • Max objects - Max number of objects in the pool.
  • Max time to wait - Max time to wait for free object in the pool.
  • Minimum time to wait before evicting - Minimum time to wait befor evicting idle object.
By default is pool disabled!
Pool configuration is persisted in EAV attributes and use form definition with code "pooling-connector-configuration".

The additional connector configuration tab lets you configure so called operation options for each type of connector. These options are then passed to each invocation of given connector. This enables us to further tweak connection paramters for each system, such as list of attributes, which should be returned from target system.

Each system has its own set of operation options. By default, only PAGE_SIZE and ATTRS_TO_GET is available for each connector, but you can easily add other options using corresponding form definition.

Example operation options:

  • PAGE\_SIZE - Number of records returned in paged search operation. This option is used for example in LDAP/AD connector
  • ATTRS\_TO\_GET - List of attributes, which should be returned from system
Operation options are persisted in EAV attributes and use form definition with code "operation-options-connector-configuration-CONNECTOR_FULL_NAME_AND_VERSION".

When the connector is configured correctly, we can move on to the System scheme tab. There, we will create the scheme either manually or we will use the scheme which will be returned by the connector itself (according to the filled-in configuration).

The scheme will be automatically created by pressing Generate scheme.

After a successful generation, there should be a new entry (object class) \ACCOUNT\ in the object types table. This entry will contain available attributes in the system (for object ACCOUNT). In our case, it will contain an attribute for each column in the mapped table and the semantic attributes:

  • \NAME\ - attribute identifying the account in the system (user name).
  • \PASSWORD\ - attribute for password mapping for the given account.
  • \ENABLE\ - attribute for mapping the indication whether the account is enabled or disabled.

When the system scheme is created, we can move on to attribute mapping in the Attribute mapping tab. Mapping serves two basic purposes:

  1. Making the scheme attributes accessible in the IdM system. Only mapped attributes can be used in IdM for active operations (provisioning/synchronization). Mapping is always tied to the operation type and entity type (identity, group).
  2. It defines which value will the attribute be mapped into in the IdM system. (identity, group, extended attribute, hidden attribute).

Firstly, we will create a group (operation type and entity type) which we would like to map. We will select Provisioning and Identity. Then we will start creating the individual mappings. It is very important to create a mapping for the account identifier in the system and connect it correctly to the IdM identity. This is done by adding a new attribute.

In the attribute mapping details we will fill in:

  • The attribute from the system scheme which identifies the account, i.e. \NAME\.
  • Fill in the name of the mapped attribute. It is pre-filled with the scheme attribute name but any other name can be used.
  • Tick Is identifier.
  • Tick Entity attribute. The attribute will be tied to the user name of the identity in IdM.
  • Fill in username as the IdM key.

Create mapping for the other attributes in the same way. Below you can find a table with the resulting mapping:

For optimalization, the attribut can be cached. New mapping attribute is marked as 'cached' by default.

  • The cache key is a mapped attribute and attributes from the end system.
  • The value is the transformed value from the system.
At this point, caching is only used in sync. This cache is cleared on start and end every sync.
If the attribute generates a value independent of the input parameters (random identifier, …), it is necessary to disable caching on such an attribute.

It's possible to send additional attributes to provisioning, when password is changed (e.g. password expiration in extended attribute). New flag sendOnPasswordChange was added to system attribute mapping - attribute with this flag checked will be send together with changed password to provisioning. Two ways for provisioning additional attributes are implemented:

  1. send additional attributes together with new password in one provisioning operation
  2. send additional attributes after password is changed in another provisioning operation

Two ways are be configurable by application configuration idm.sec.acc.provisioning.sendPasswordAttributesTogether:

  • true: additional password attributes will be send in one provisioning operation together with password
  • false: additional password attributes will be send in new provisioning operation, after password change operation (some systems doesn't support to change other attributes in the same request with password)
Configuration is effective for all target systems. All target system will be using one configured way (configuration per-system is not implemented, coming soon).

Send attribute only on password change

Since version 11.0.0 a new flag Send only on password change was added to the attribute detail.

If is this flag checked, then the attribute will be send to the system only during change of password operation. It means that this attribute will be ignored in standard provisioning operations (create/update).

This checkbox can be use only if attribute has checked flag Send additional attributes with password.

In the previous paragraphs, we created a system which contains a scheme and mapped attributes for an identity and provisioning. In order to create an account for a specific user in the end system, we have to create a role which will be assigning this system and, at the same time, we have to assign this role to the user.

  • We will create a new role Table role.
  • In the Connected systems tab, we will create a new connection to our system Table for the entity Identity.
  • We will assign this role to a user. We will do this in the user details in the Assigned roles tab.
  • After successfully assigning the valid role, a corresponding account in the system should be created. We can check this in the "System accounts" tab, where a link to the account should have been created.
  • We can also check the account creation in the Table system. A link to the user account should have been created in the System entities tab.
  • System identifier, which is an identifier returned by the system after the creation of the account.

In the previous chapter we explained how to assign a role tied to a system. By doing this, we created an account which corresponds precisely to the mapping in the system. That was a default mapping. However, if want to create a role which will affect only a specific attribute, we will need to adjust the behavior (mapping) of the attribute, i.e. we will need to overload the attribute mapping.

We need to create a role where, after it has been assigned, the linked accounts will contain first name + the "overloaded attribute" invariable in the firstname attribute.
  • We will create a new role Table role - first name.
  • Add the same system mapping as with the *Table role* role.
  • In the Attributes mapped within this role table, we will add a new attribute which will overload the default attribute firstname.
    • Fill in the name - for example "firstname - overloaded attribute (adds the "overloaded value" suffix)".
    • Tick Entity attribute.
    • Fill in firstName as the IdM key.
    • Insert "return attributeValue + "overloaded value";"" in the script for transformation into the system.
    • Now, if the role is assigned to a user, the account on the end system Table will contain the overloaded value suffix in the firstname attribute.

Mapped attribute strategy

The attribute strategy defines how will the attribute and primarily its value be dealt with during provisioning and synchronization.

The strategies are as follows:

The default strategy which sends the acquired value to the end system as IdM calculates it. If the value is the same on the end system, the attribute isn't sent.

This strategy is applied both to account editing and its creation.

The attribute value which is calculated by IdM is sent to the end system only if the end system value is calculated as equal to null. Before the final comparison whether the value is non-existent, transformation from the system is applied to the attribute value from the end system. The transformation is defined in the mapping of the attribute.

This strategy is applied both to account editing and its creation.

This strategy is also implemented in the case of synchronization. The function is similar to that of provisioning. The opposite is only the source and destination. In the case of synchronization, it is the source account on the end system and the goal is synchronized entity. Before comparing, a transformation to the system is applied.
The WRITE-IF-NULL strategy has a lower priority than SET, MERGE and AUTHORITATIVE_MERGE. Therefore, if we define one attribute with the SET strategy and another with the WRITE-IF-NULL strategy in the default mapping on the system, then the value of the WRITE-IF-NULL attribute will never be used. In this case, it will be necessary to define only the attribute with the WRITE-IF-NULL strategy in the default mapping. The other attribute with the SET strategy will have to be defined in the role as an overload of the default attribute.

The attribute value which is calculated by IdM is sent to the end system only when creating a new account on the end system.

This strategy is also implemented in the case of synchronization. The function is similar to that of provisioning. The opposite is only the source and destination. The value of the attribute from the system is set to the entity only when it is creating.

The CREATE strategy has a lower priority than WRITE-IF-NULL, SET, MERGE and AUTHORITATIVE-MERGE.

This strategy (identically to MERGE) alters the logic of calculating attributes and their values. With the other strategies applies the following: if there are more occurrences of the same strategy for the same attribute (more overloaded attributes in more roles), the one with the highest priority is found (according to role priorities or their names). The resulting value going into provisioning is calculated on the basis of this one attribute only.

Both the MERGE and AUTHORITATIVE_MERGE strategies, can be linked only to a multi-value scheme attribute!

The MERGE strategies are different, however. If there are more attributes overloading the same default attribute, all the values are merged into one. This resulting value (list) is sent to the IdM system as a "wish" of how the value should look like on the end system.

A situation where there are two overloaded attributes for the same default attribute, one having the AUTHORITATIVE_MERGE strategy and the other the SET or MERGE strategy, will not be valid. Such a situation is collisional and will result in an exception during provisioning!

With authoritative merge, the original values of the attribute on the end system are not taken into account (i.e. if some other system or administrator had put a different value to the attribute, it would be ignored by IdM).

Therefore, in a situation where the resulting value of the merged attribute from IdM is [A,B] and the value of the same attribute on the end system is [C,D], then the end system attribute will gain the value of [A,B] after provisioning.

Since version 9.3.0 was provisioning merge completely reimplemented!

This strategy follows the same pattern as authoritative merge up until the phase of creating a "wish" for IdM.

A procedure different from authoritative merge occurs at the moment of provisioning. The goal is to ensure that the attribute on the end system can be shared by more systems (it means IdM is not authority for all values in the attribute).

A situation where there are two overloaded attributes for the same default attribute, one having the MERGE strategy and the other the SET or AUTHORITATIVE_MERGE strategy, will not be valid. Such a situation is collisional and will result in an exception during provisioning!

Another goal is to ensure the correct removing of the managed values.

For identify what values are controlled by the IdM, we get it based on the settings of the roles mapping the system and overloaded this attribute (this 'calculation of the definition' approach is used since version 9.3.0. The previous approach, where the values ​​from the provisioning archive were used no longer used).

The controlled values ​​are currently valid values ​​(based on roles values) and values valid in the past.

The controlled values ​​are currently valid values ​​(based on roles values) and values valid in the past. Such a "historical" value arises at the time of the definition of role change, typically in the following cases:

* Change the script defining the controlled value. For example, if we change the assigned value 'A' (in transformation to the system) to 'Z', then the currently contolled value will be 'Z' and the new historical value 'A'. * By disabling the attribute - if we disable the attribute assigning the value 'A', then a new historical value 'A' will be created. The 'A' value will no longer be part of the currently controlled values ​​that are calculated based on the definition. * Change the attribute strategy - if we change the strategy from 'Merge' to another, the value 'A' will again be only historical.

Because the calculation of which values are currently controlled could be time expensive operation, are that values cached in entity SysAttributeControlledValue which is mapped on system mapping attribute. That persisted 'cache' is evicted when definiton for that attribut is changed on the role (SysRoleSystemAttribute).

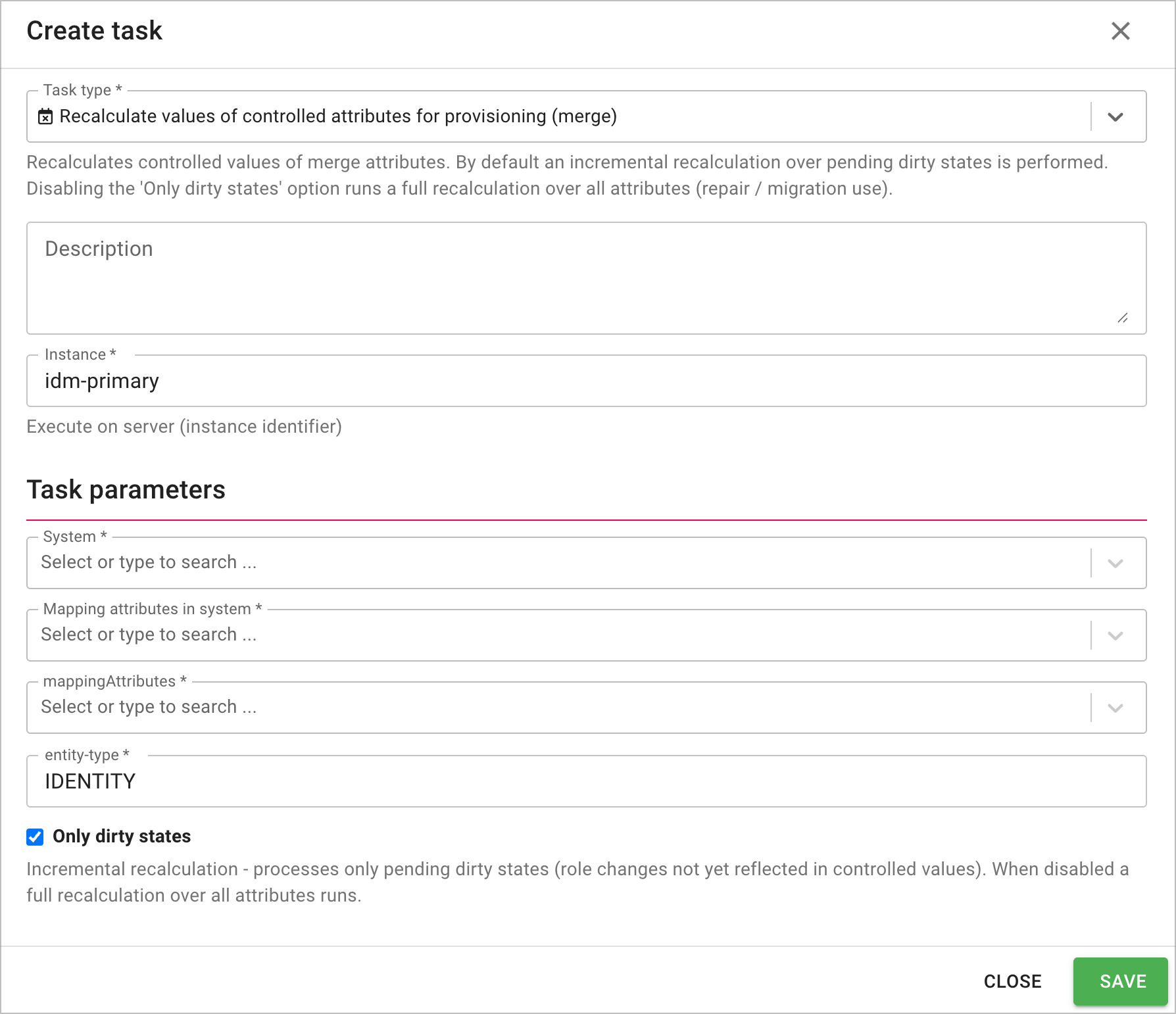

The evicted cache is recalculated by using the AttributeControlledValuesRecalculationTaskExecutor task. This task recalculates the cache for all evicted attributes of the provisioning mapping.

Since version 9.7.5 is recalculation of evicted attribute not starts on save a attribute (SysRoleSystemAttribute)! Attribute on the system is marked as evicted only. Recalculation will be processed during first using of controlled values. This is typically on first update provisioning. Beware if new account is created and create provisioning is executed, then recalculation is not executed, because in this situation are controlled values not needed!
The merge attribute value must be a constant. For performance reasons, all system merge values are cached and this cache is recalculated only if the corresponding role attribute changes! If the value is dynamic, the cache will not contain the correct data!

Cache recalculation with this task can be started manually. At this startup, you must specify the system identifier and entity type (the 'IDENTITY' is filled in as default). It is also possible to deselect onlyEvicted. In this case, all attributes for that mapping will be recalculated even if their cache is not marked as evicted. Second situation when is cache recalculated is during provisioning. If the attribute is still marked as evicted.

Therefore, in a situation where the resulting value of the merged attribute from IdM is [A,B] and the value of the same attribute on the end system is [C,D], then the end system attribute will gain the value of [A,B,C,D] after provisioning.

Let us continue with the previous case, where the value [A,B,C,D] is on the end system. If we remove the role which was defining value B in IdM, then the value on the end system must be [A,C,D] after provisioning. We will then remove only the value which we are managing.

In our case we have the following information at our disposal:

  • The current wish of IdM for this attribute is value A.
  • From the definition of the controlled values for this attribute [A,B].
  • The current value on the end system is [A,B,C,D].

By comparing these values, we can deduce that we have to remove value B, so that the result is value [A,C,D].

An advantage of this approach is the ability of detecting dynamic changes as well. This means that if we don't remove the role which assigned value B, but instead we change the calculation definition of this value, so that the result is X, then it follows from the above mentioned that we are able to correctly identify that we want to send value [A,X,C,D] to the end system.

A simple way of how to verify which attributes (values) were "wishes" in IdM and which were actually sent to the end system can be seen in the provisioning archive (Audit / Provisioning / Archive)
Final values merge from roles is set, all duplicates will be removed. For example: if you have two roles with merge mapping for same attribute and value for this attribute is same, to end system will be send only one.

Since version 9.7.0 was added new feature enabling skip of value defined in merge attribute, if contract (on witch is role assigned) will be excluded.

For enable this feature you need to check the option 'Skip value when contract is excluded'.

Value will be skipped only if:

  1. Attribute has strategy type sets to MERGE or AUTHORITATIVE_MERGE (only for this options will checkbox shows).
  2. Feature is enabled on the role mapping.
  3. Identity has assigned this role/s to the excluded contract/s. If identity has assigned more same roles on different contracts, then for skipping of the value must be all connected contracts excluded.
If all roles which defines the account will have skipped values, then account will not be deleted!

Aside from a strategy, every attribute can also have the indications Always send and Send only if IdM value exists. These indications can be combined with all strategies.

  • Always send - Ensures that the attribute will be sent to the end system even when it has been assessed that its value hasn't changed.
  • Send only if IdM value exists - Ensures that the attribute will be sent only when the calculated IdM value has some value (if it is a String type value, it cannot be blank). This setting ensures that the IdM system doesn't delete attribute values on the end system when it can't calculate them.
